Integration with Heroku Application Logs

This guide explains how to stream Heroku application logs—including app, router, error, and system logs—into OpenObserve using a forwarding app that parses Logplex syslogs into structured JSON.

Overview

Heroku’s Logplex consolidates logs from your app (stdout/stderr), router (HTTP requests), and system events (dyno restarts). While convenient, it’s limited by retention length (1,500 lines or one week) and raw text format, which is hard to analyze.

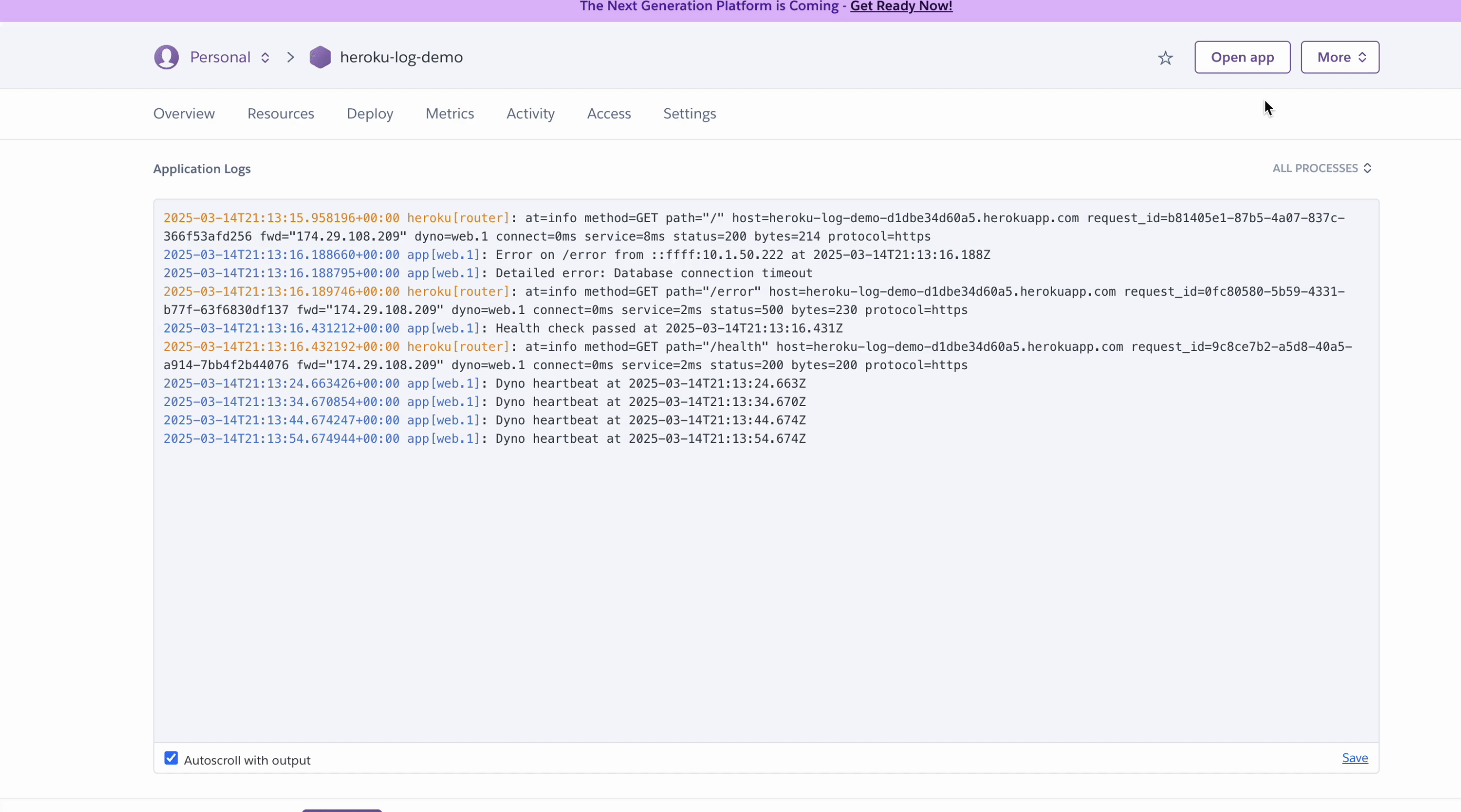

Heroku logs

OpenObserve ingests these logs in structured JSON format, enabling fast search, rich visualization, and proactive alerting.

Steps to Integrate

Prerequisites

OpenObserve account (Cloud or Self-Hosted)
An existing Heroku application already deployed and generating logs
Heroku CLI installed and authenticated
Node.js, npm, Git, and terminal access

Step 1: Retrieve OpenObserve Endpoint and Credentials

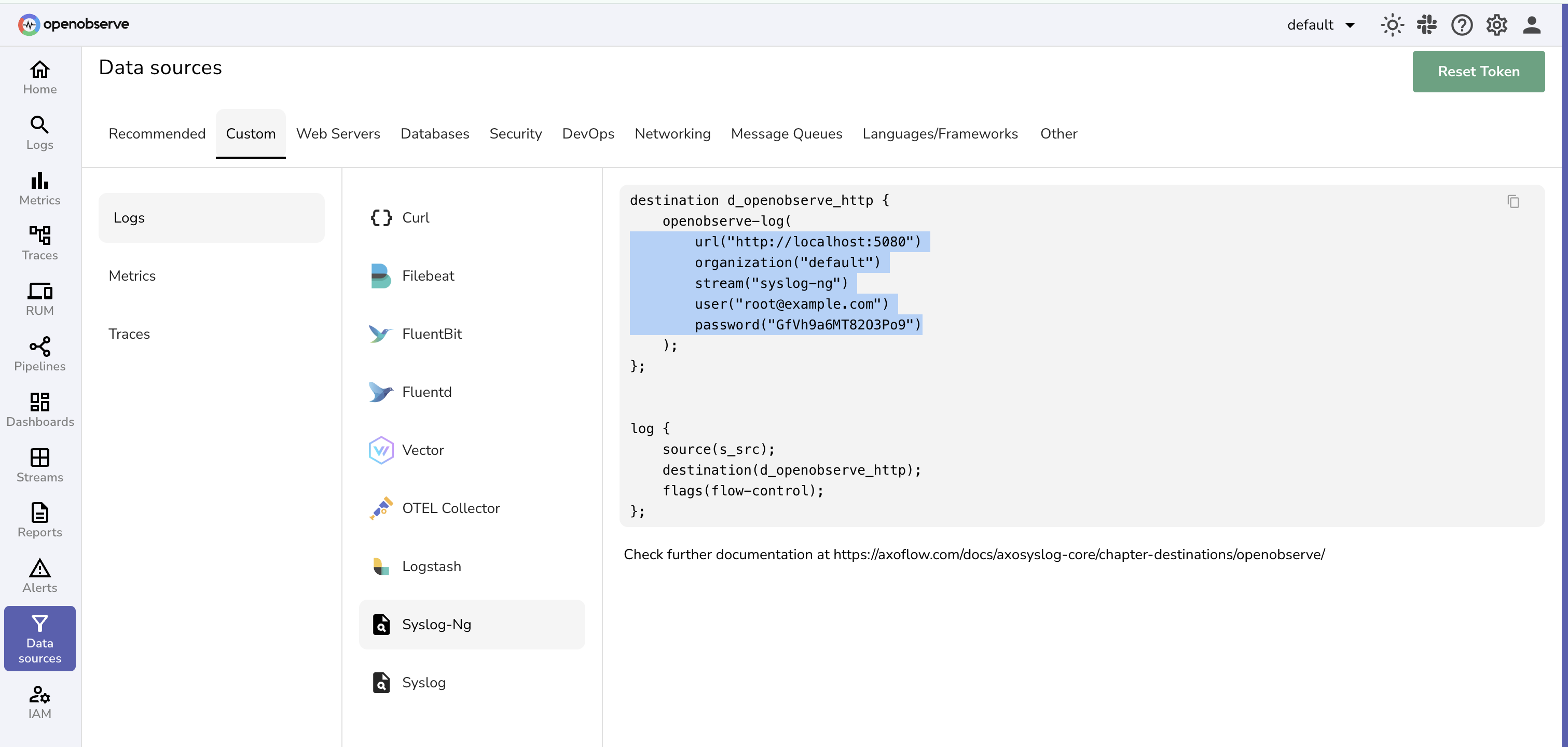

In OpenObserve: go to Data Sources → Custom → Logs → Syslog-NG section
Keep the credentials handy.Construct the Heroku-specific ingestion endpoint:
```
https://api.openobserve.ai/api/<organization_id>/<stream_name/_json
```

Step 2: Build a Forwarding App to Parse and Send Logs

Initialize a new forwarding app:

mkdir heroku-log-forwarder
cd heroku-log-forwarder
npm init -y
npm install express body-parser node-fetch@2

Create index.js and paste:

const express = require('express');
const bodyParser = require('body-parser');
const fetch = require('node-fetch');

const app = express();
app.use(bodyParser.text({ type: '*/*' }));

const OPENOBSERVE_URL = 'https://api.openobserve.ai/api/<organization_id>/heroku_logs/_json';
const OPENOBSERVE_USER = 'your-username@example.com';
const OPENOBSERVE_PASS = 'your_password';

const logRegex = /^(\d+) <\d+>1\s+([\d-:.+]+)\s+host\s+(\w+)\s+(\w+)\.(\d+)\s*-\s*(.*)$/;
const routerRegex = /^(\d+) <\d+>1\s+([\d-:.+]+)\s+host\s+heroku\s+(\w+)\s*-\s+at=info\s+(.*)$/;

app.post('/logs', async (req, res) => {
  const rawLogs = req.body.split('\n').filter(log => log.trim());
  const enriched = rawLogs.map(log => {
    let match = log.match(logRegex);
    if (match) {
      const [, , timestamp, source, dynoNum, dynoId, message] = match;
      return {
        app: "your-heroku-app-name",
        dyno: `${dynoNum}.${dynoId}`,
        message,
        source: source.toLowerCase(),
        timestamp
      };
    }
    match = log.match(routerRegex);
    if (match) {
      const [, , timestamp, source, details] = match;
      const params = details.split(' ').reduce((acc, pair) => {
        const [key, value] = pair.split('=');
        acc[key] = value.replace(/^"(.*)"$/, '$1');
        return acc;
      }, {});
      return {
        app: "your-heroku-app-name",
        dyno: params.dyno,
        message: details,
        source: source.toLowerCase(),
        timestamp,
        ...params
      };
    }
    console.warn(`Unparsed log: ${log}`);
    return { message: log, timestamp: new Date().toISOString() };
  });

  try {
    const resp = await fetch(OPENOBSERVE_URL, {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        'Authorization': `Basic ${Buffer.from(`${OPENOBSERVE_USER}:${OPENOBSERVE_PASS}`).toString('base64')}`
      },
      body: JSON.stringify(enriched)
    });
    if (!resp.ok) throw new Error(`Ingestion failed: ${resp.status}`);
    console.log(`Forwarded ${enriched.length} logs`);
    res.sendStatus(200);
  } catch (err) {
    console.error('Error forwarding logs:', err.message);
    res.status(500).send('Forwarding failed');
  }
});

app.listen(process.env.PORT || 3000, () => console.log(`Forwarder running on port ${process.env.PORT || 3000}`));

Update placeholders (<organization_id>, credentials, and app name) accordingly
Create a proc file web: node index.js

Update package.json file:

{
    "name": "heroku-log-forwarder",
    "version": "1.0.0",
    "main": "index.js",
    "scripts": {
        "start": "node index.js"
    },
    "dependencies": {
        "express": "^4.21.2",
        "body-parser": "^1.20.3",
        "node-fetch": "^2.6.7"
    }
}

Step 3: Deploy Forwarding App to Heroku and Configure Log Drain

Deploy the forwarding app:

git init
git add .
git commit -m "Heroku log forwarder"
heroku create heroku-log-forwarder
git push heroku main

Note the deployed URL (e.g., https://heroku-log-forwarder.herokuapp.com).

Configure the log drain from your existing app:

heroku drains:add "https://heroku-log-forwarder.herokuapp.com/logs" -a <your-heroku-app-name>

Optionally, reduce sampling rate if you encounter buffer overflows:

heroku drains:update --sampling-rate 25 <drain-id> -a <your-heroku-app-name>

Verify drain setup:
```
heroku drains -a <your-heroku-app-name>
```

Step 4: Verify Logs in OpenObserve

In OpenObserve, go to Logs → heroku_logs and run a query to see structured entries.

Verfify Heroku logs in Openobserve

Troubleshooting

No logs or some log types missing

Check Heroku app logs (More → View logs) to confirm log generation (Router, App, Error types)
Confirm the drain is active:
```
heroku drains -a <your-heroku-app-name>
```
Tail your forwarder logs for warnings or errors

Buffer overflow (Error L10)

Reduce sampling rate:

heroku drains:update --sampling-rate 10 <drain-id> -a <your-heroku-app-name>

Unparsed logs

Review Unparsed log warnings in forwarder logs
Adjust regex patterns in index.js

Truncated logs

Heroku truncates lines >10 KB. Simplify log message content in forwarding app and redeploy

Slow log delivery

Increase heartbeat interval in index.js or reduce traffic volume
